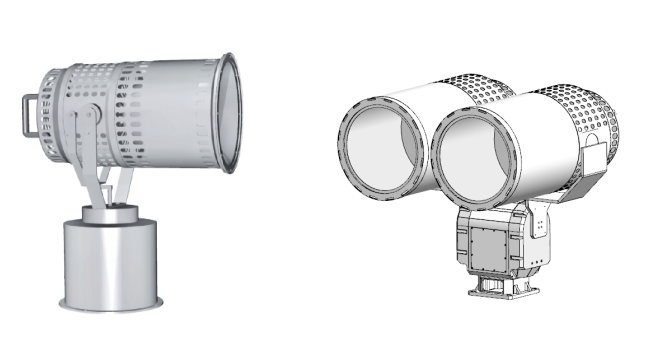

S08系列 扫海灯
应用领域
Application Area
安装在各类船舶的船首位置，作为扫海灯或探照灯使用，用于海上搜救，海事海监、海警及渔政执法。
It is installed at the bow position of various types of ships and used as a sea-sweeping or searchlight for maritime search and rescue, maritime sea surveillance, marine police and fishery law enforcement。
主要功能及特点
Major functions and characteristics
散热器材质为1070纯铝，冷锻成型；
The radiator is made of 1070 pure aluminum, cold forged;
采用空气动力学原理设计的镂空式不锈钢外壳；
Hollow stainless steel casing designed with aerodynamics;
CSP集成式LED光源，铜基板热沉，导热系数≥400，且加入特殊荧光粉技术，透雾能力强；
CSP integrated LED light source, copper substrate heat sink, thermal conductivity ≥400, and added special phosphor technology, strong fogging ability;
复合型二次光学技术（反光杯+菲涅尔透镜），光束角＜1.5度；
Compound secondary optics technology (reflector + Fresnel lens), beam angle <3 degrees;
云台底座采用了智能伺服控制技术；
The Yuntai base adopts intelligent servo control technology;
铝质散热器和铝质反光杯采用达克罗防腐技术，不锈钢外壳表面高压喷塑处理，防腐性能强。
The aluminum radiator and the aluminum reflector are made of Dacromet anti-corrosion technology, and the stainless steel shell surface is treated with high-pressure spray, which has strong anti-corrosion performance.
